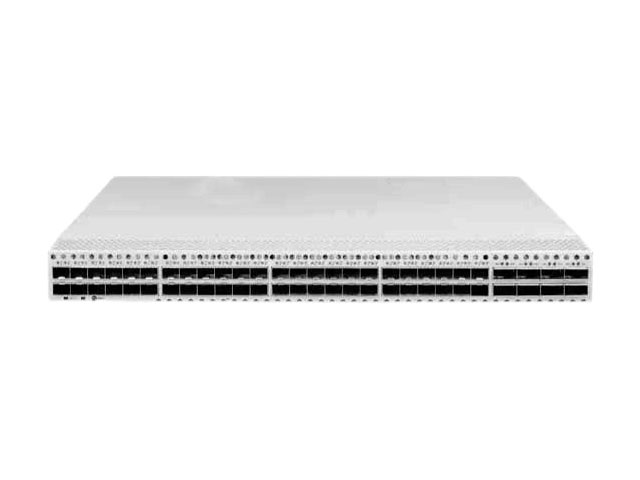

Характеристики коммутатора QTECH QSW-6700-56F
| Порты 100GbE QSFP28 | 8 портов |
| Порты 25GbE SFP28 | 48 портов |
| Порты консоли | 1 порт RS-232 (RJ45) |
| Порты управления MGMT | 1 порт |
| USB интерфейс | 1 порт USB 2.0 |
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, DHCP Relay Agent*, DHCP Option 82*, DHCPv6 Option 37/38*, IPv6 NDP |
| QinQ | Basic QinQ*, Selective QinQ*, Flexible QinQ* |
| Spanning Tree Protocols | IEEE802.1d (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), Spanning Tree Root Guard (STRG) |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Private VLAN, VLAN Mapping 1 to 1, N to 1, GVRP* |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv4 multicast ACL, IPv6 standard ACL, IPv6 extended ACL, IPv6 multicast ACL, MAC standard ACL, MAC extended ACL, MAC-IP extended, IP Priority (DSCP, TOS, Precedence)*, IP fragmented packet*, TCP/UDP port (equal, not equal, range, lower than, greater than)* |
| QoS | CoS, 802.1p, DSCP, QoS maps, Flow-based Redirection*, Flow remarking*, PQ*, WRR*, WDRR*, RED*, Weighted RED (WRED)*, Classifies the port based stream by MAC address, IP address, IP priority, DSCP priority, TCP/UDP port and protocol number* |
| Агрегирование портов | Поддержка LAG, LACP |
| Зеркалирование трафика | Port Mirror, CPU Mirror, SPAN |
| Протоколы резервирования | 802.1D STP, 802.1W RSTP, 802.1S MSTP LACP, MRPP, ERPS, CFM*, BFD для BGP/OSPF/VPLS PW/VRRP* |
| Протоколы управления | TFTP/FTP, SNMPv1/v2, SNMP Trap, CLI (Console / Telnet / SSHv2), Web/SSL, Public & Private MIB interface RMON (1,2,3,9), Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM ULDP, LLDP/LLDP; MED; MPLS ping*, MPLS trace route link state diagnostics*, MPLS QoS (EXT)*; sFlow v4/v6* |

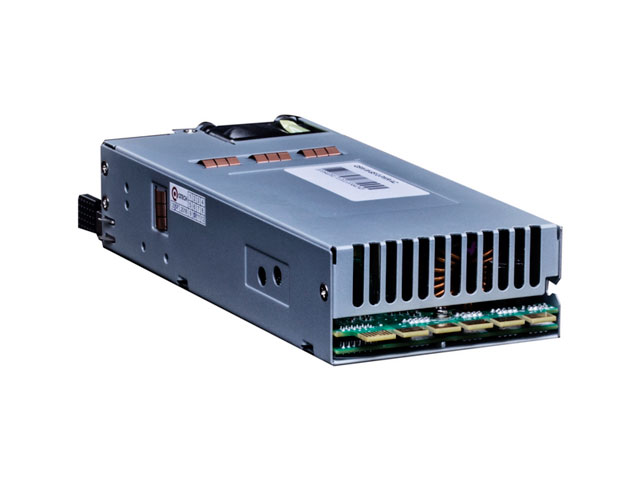

| Тип источника питания | 2 сменных БП (поставляются отдельно) |
