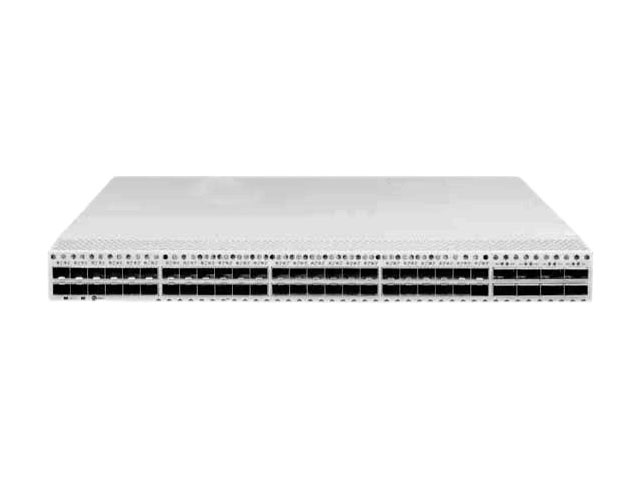

Характеристики коммутатора QTECH QSW-6700-32HB
| Порты 100GbE QSFP28 | 32 порта |
| Порты консоли | 1 порт RS-232 (RJ45) |
| Порты управления MGMT | 1 порт |
| USB интерфейс | 1 порт USB 2.0 |
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Server, IPv6 NDP |
| Spanning Tree Protocols | IEEE802.1d (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), Spanning Tree Root Guard (STRG) |
| VLAN | IEEE802.1Q, Voice VLAN, Port-based VLAN, Protocol-based VLAN, MAC-based VLAN, Private VLAN, VLAN Mapping 1 to 1, N to 1 |
| ACL | IPv4 standard ACL, IPv4 extended ACL, IPv4 multicast ACL, IPv6 standard ACL, IPv6 extended ACL, IPv6 multicast ACL, MAC standard ACL, MAC extended ACL, MAC-IP extended |
| QoS | CoS, 802.1p, DSCP, QoS maps, Classifies the port based stream by MAC address, IP address, IP priority, DSCP priority |
| Агрегирование портов | Поддержка LAG, LACP |
| Зеркалирование трафика | Port Mirror, CPU Mirror, SPAN |
| Протоколы резервирования | 802.1D STP, 802.1W RSTP, 802.1S MSTP LACP, MRPP, ERPS |
| Протоколы управления | TFTP/FTP, SNMPv1/v2, SNMP Trap, CLI (Console / Telnet / SSHv2), Web/SSL, Public & Private MIB interface RMON (1,2,3,9), Ping, Trace Route, Syslog, SNTP/NTP, Dual IMG, Multiple Configuration Files, VCT, DDM ULDP, LLDP/LLDP MED |
