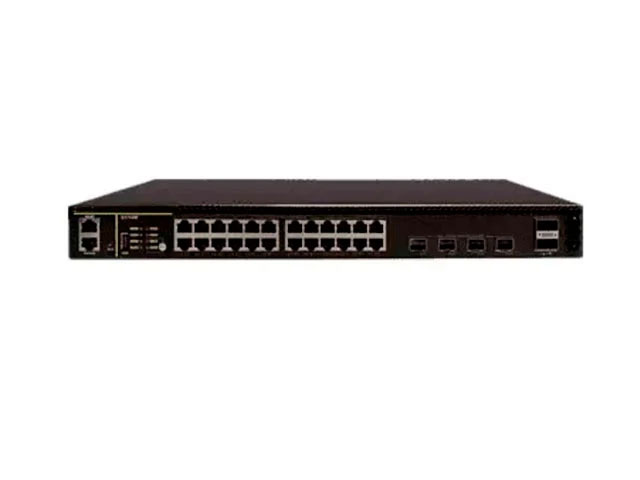

Техническое описание коммутатора ZRJ S57X-24G6XS
| Физический порт | 24*10/100/1000Base-T + 6*10GbE(SFP+) Auto-MIDX |
| Порт управления |
1 порт управления Ethernet RJ45 1 консольный порт 1 интерфейс USB2.0 |
| Коммутационная способность | 168 Гбит/с |
| Скорость пересылки | 125Mpps |
| Jumbo Frame | 12K |
| MAC-адрес | 32K |
| Таблица ARP | 1K |
| Таблица маршрутизации | 1K |
| Таблица ACL | 3K |
| Размеры (Ш*В*Г) | 440 мм x 44 мм x 380 мм |
| Относительная влажность воздуха | 5%~95%, без конденсации |
| Температура | Рабочая температура 0°C~50°C, температура хранения -40°C~70°C |
| Источник питания | AC:100~240VAC, 50~60Hz |
| Потребляемая мощность | <40 Вт |
| PoE | NA |
| Характеристики L1, L2 |
IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4) Port loopback detection LLDP and LLDP-MED UDLD 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk LACP load balance ERPS (G.8032) N:1 Port Mirroring RSPAN IEEEE802.1d(STP) IEEEE802.1w(RSTP) IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel 802.1Q, 4K VLAN MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN QinQ, Flexible QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control IGMP v1/v2/v3 Snooping and L2 Query ND Snooping MLDv1/v2 Snooping Port Security Flow Control: HOL, IEEE802.3x Bandwidth Control |
| Особенности L3 |
Static Routing, RIPv1/v2, ISIS, OSPFv2, BGP4 OSPFv3, BGP4+ OSPF multiple processes VRF-Lite LPM Routing Policy-based routing (PBR) for IPv4 and IPv6 VRRP URPF, ECMP BFD IGMP v1/v2/v3, IGMP Proxy, Static Multicast Route Multicast Receive Control Illegal Multicast Source Detect ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit Anti ARP Cheat, Anti ARP Scan DNS Client, DNS Relay GRE Tunnel |
| IPv6 |
6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel ICMPv6, ND, DNSv6 IPv6 LPM Routing, IPv6 Policy-based Routing (PBR) IPv6 VRRPv3, IPv6 URPF, IPv6 RA RIPng, OSPFv3, BGP4+ MLD Snooping, IPv6 Multicast VLAN MLDv1/v2, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS |
| QoS |
8 Queues SP, WRR, SP+WRR WRED Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number Traffic Policing PRI Mark/Remark |
| ACL |
IP ACL, MAC ACL, IP-MAC ACL Standard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS Redirect and statistics Rules can be configured to port, VLAN, VLAN routing interfaces Time Ranged ACL ACL rules can be configured to port, VLAN |
| Безопасность |
802.1x AAA Port, MAC-based authentication Accounting based on time length and traffic Guest VLAN and auto VLAN RADIUS for IPv4 and IPv6 TACACS+ for IPv4 and IPv6 MAB |
| Монитор трафика DHCPv4/v6 |
DHCP Server/Client for IPv4/IPv6 DHCP Relay/Option 82 DHCP Snooping/Option 82 |
| Монитор трафика | sFlow Traffic Analysis |
| Управление сетью безопасности |
CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 Syslog and external Syslog Server HTTP SSL SNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMON 1,2,3,9 Authentication by Radius/TACACS SSH v1/v2 Dual firmware images/ Configuration files 802.3ah OAM, 802.1ag OAM |
| Особенности центра обработки данных | VSF (Virtual Switch Framework) |
